Food grade grain powder mixing machine corn feed wheat bran ribbon
mixer machine
Our BSR ribbon mixer is a pioneer product researched and a new high-efficiency mixer.
It is widely used in the solid-solid (powder material) and
solid-liquid (powder material & fluidity material) mixing in the
field of chemical industry, pharmacy, foodstuff industry, etc.

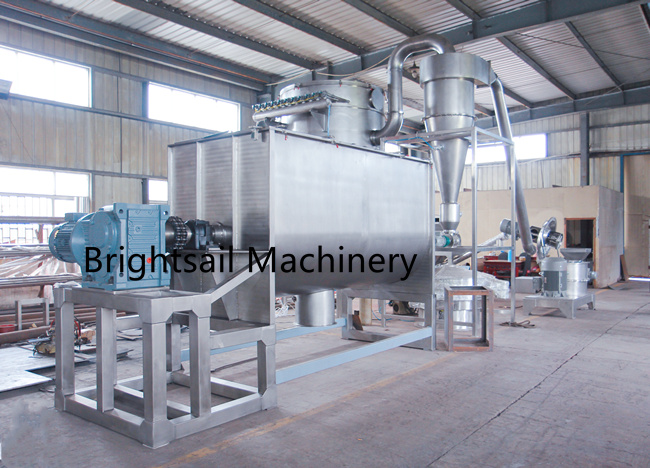

It consists of U-Shape tank, spiral and drive parts. Outer spiral
conveys the material move from the two sides to the center and the
inner screw conveys the material move from the center to the sides
to get a high effective convective mixing.
Working method:
The principle is that the inner and outer diameters of the shaft
mounted on the mixing shaft spirally drive the material in the
cylinder, so that the mixer can turn the animal material in the
cylinder to the maximum extent. In the structure of the stirrer,
the spiral is designed to be reverse spirals inside and outside,
and the left and right are reverse spirals. When the stirrer is in
operation, the inner spiral drives the material near the axis to
rotate the axis, and the axis is pushed inward to both sides.
Rotating, the axial direction is pushed from both sides to the
inside, so that the materials circulate convection and shear in the
cylinder, and the materials are quickly mixed with each other in a
short time.
Main features:
1. Horizontal tank body, need small space but more capacity.
2. Dual screw structure-The inner screw push the material form
central to sides and the outer screw push the material from sides
to the center to make the material effective mixing.
3. Gear box drive the auger shaft , low noise and low malfunction,
long using life
4. U-Shape tank bottom, better for material discharge and cleaning
5. Pneumatic cylinder to control the discharge exit.
6. Gas pressure spring help the top cover easy open.
Our company:
We are professional manufacturer with decade experience. Quality is
the our first concern. All the efforts we make is to achieve the
full satisfactions of our customers.
Quality is thoroughly carried out in the entire procedures from
material choosing, machine production, equipment testing and
packaging, on time delivery and excellent after sales service. Our
machines are mainly featured by the durability and hygienic
processing.
Technical data:
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
