Grain flour powder blending machine wheat rice powder double cone
mixer machine

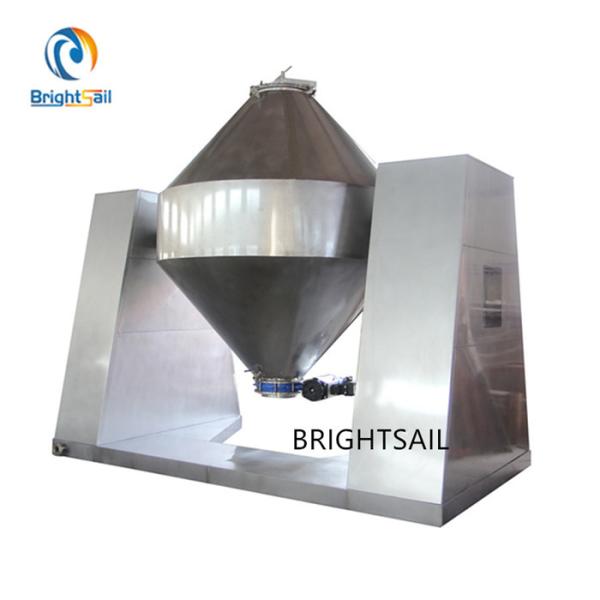

BSW double cone mixer is applicable to mix dry granule material for pharmaceutical
industry, foodstuff industry, chemical industry and other relative
industries.
It has remarkable effect in mixing powders and particles with
relatively good fluidity. With the each Index reaching the standard
of same kind of foreign product, it's barrel is made of stainless
steel, which is polished both inside and outside, featuring
beautiful appeatance and easy operation.
Working method:
The machine absorb foreign products advantage to design, because
two barrels length are not same will not asymmetry ; when the mixer
revolution , the raw material in barrel analysis and combination
with different potential energy. The raw material spread mixing
alternately , with the time go on , the raw material will mixed
very well.
Main features:
1. The powder or granule material is fed into the double cone
container through the vacuum feeder or manually. The double cone
container is rotating continuously to create the compound crushing
motion until the material is mixed uniformly.
2. Energy saving, easy for operation, low labor cost, and high
efficiency.
3. Mirror polished of inner and outer shell to meet GMP standard.
4. No blind angle, no accumulation of materials, high speed.
5. Rotating valve is equipped for discharging
6. Fully integrated motors and controls.
7. Can work with vacuum feeding system to create dust-free working
condition.
8. Intensifier bars can be equipped for deagglomeration.
9. Safety railings can be equipped for protection.
Our company:
We Brightsail Machinery are engaged in manufacturing a wide range
of mixers, double cone mixer, v shape mixer, etc. Our machine can
be used in food plant plant and chemical plant for powder mixing.
And we provide customization service for our clients to meet
various requirements. Within years, we have exported machines to
more than 50 countries and won the good repuation from our
customers.
Hope to build a big picture with you in the future.
Technical data:
Model | BSW-180 | BSW-300 | BSW-500 | BSW-1000 | BSW-1500 | BSW-2000 | BSW-2500 | BSW-3000 | BSW-4000 |
Full volume(m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
Mixing speed(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 |
Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 11 |
Gross rotation height(mm) | 1850 | 1850 | 1950 | 2460 | 2540 | 3650 | 3650 | 3700 | 3730 |
Weight(kg) | 280 | 310 | 550 | 810 | 980 | 2150 | 2150 | 2500 | 3200 |
