Coriander powder grinding milling machine turbo type universal
crusher

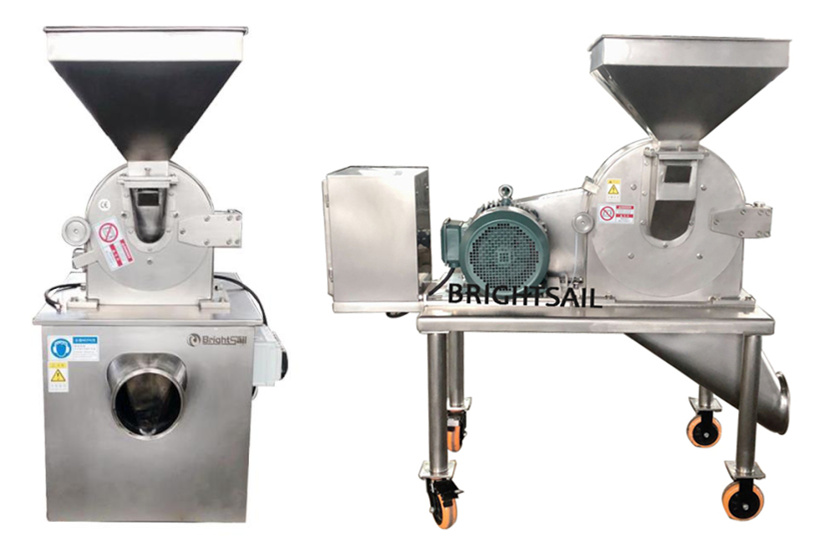

BSU universal powder grinding machine is suitable for material
crushing in the industries of pharmaceutics, chemical and
foodstuff. Such as kinds of spices, grain, herb, sugar, etc. There are 3
types different knives of BSU crusher for your choices, hammer
type, turbo type, pinned disc type. For grinding different
materials and making different particle sizes, we will recommend
you the suitable knife type.
Principle:
After putting the materials into the crushing chamber, the movable
knife disc and fixed knife disc rotate at high speed. Then the
materials will be crushed under the impact of knife discs, and you
will get the fine powder through the screen/sieves inside. If the
particle is bigger than the hole size of sieve, it will continue to
be crushed in the mill cavity.
Main features:
1. Simple structure, which is easy for operating and cleaning.
2. Small space needed.
3. Small power consumption.
4. Low cost, but is suitable for grinding most materials.
Our company:
Brightsail machinery has found nearly 15 years, who is experienced in designing and
producing the powder processing solutions for different industries,
such as chemical, pharmacy, foodstuff and so on. With our own factory, 20 years’ experience, 79 workers, 6
professional engineers, more than 10 years' experienced
technicians, advanced equipments, this is how we ensure superior
quality, competitive offers and high efficiency for global valued
customers.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 | 900 |
