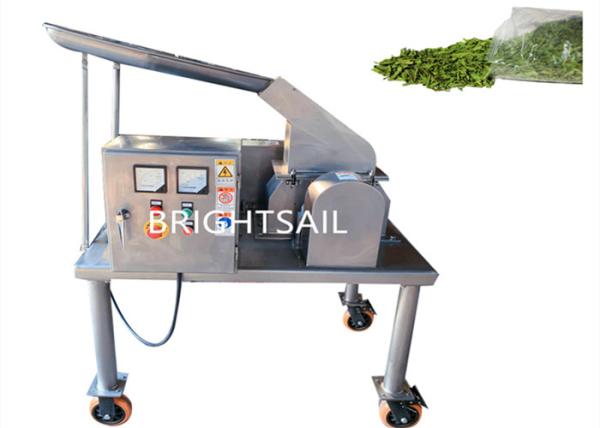

High efficiency herbal powder grinder machine dry neem leaf hammer
mill
Our BSF high efficient hammer mill is a kind of blade grinder which can make dry materials into 10-120
mesh,just change the screen in the mill chamber can change the
powder particle size.
This machine can be used in food, chemical, pharmaceutical and
other industries,such as spice,herbs,crystal materials,etc.
Working method:
This is a machine running at high speed. The target material is cut
and ground by the high speed knife. The shape and size of the knife
are selected according to different materials.There are two kinds
of knives for customers to choose,one is hammer mill,it is suitable
for making materials into powder;another is knife type,and it can
make dry materials into small granules.
Main features:
1.All parts contacting materials are made of stainless steel, which
is anti-acid and anti-corrosive, so that the machine is according
with sanitary standard.
2.The machine has the features of stable running, easy moving, low
noise, high grinding efficiency, and low consumption of power.
3.This machine covers a small area and has casters at the bottom,
which is convenient to move.
4.Can make different sizes of powder,just change the screen can do
it.
Our company:
We are a professional manufacturer with 18 years of experience.
Quality is our first concern. All our efforts are to satisfy our
customers completely.
From the whole process of material selection, mechanical
production, equipment testing and packaging, on-time delivery,
excellent after-sales service, the quality has been fully
guaranteed.
Our machines have been delivered to more than 50 countries and
regions, and have been widely praised by customers. Even some
customers will buy our machines again for new projects.
Technical data:
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
