20-1800 kg/h High-production Teff Gringding Machine For Industry
BSP flour milling machine is made up of crusher, cyclone, dust collector, blower and
electric control box with the capabilities of winnowing, non-sieve
or mesh, equality of granule size, and continuous processing etc,it
is also one of the best-selling products of our company, which is a
very good choice for customers with large production demand. Of
course, our overseas customers are also very satisfied with this
product.
Main Features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric
parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust
collecting box.
4)No need screen, particle size can be changed by change speed;
particle size varies from 80 to 500 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket
to cool the machine.

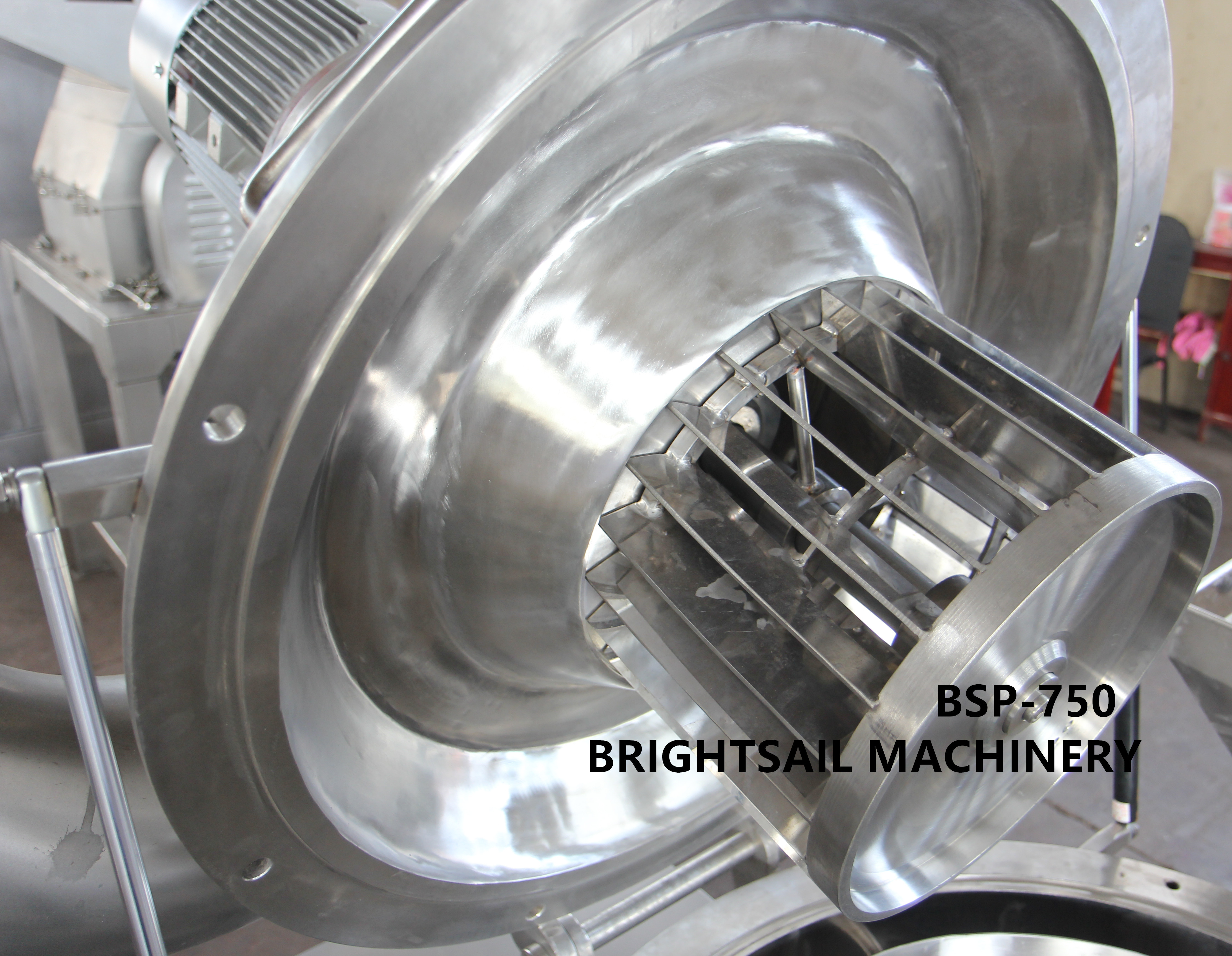

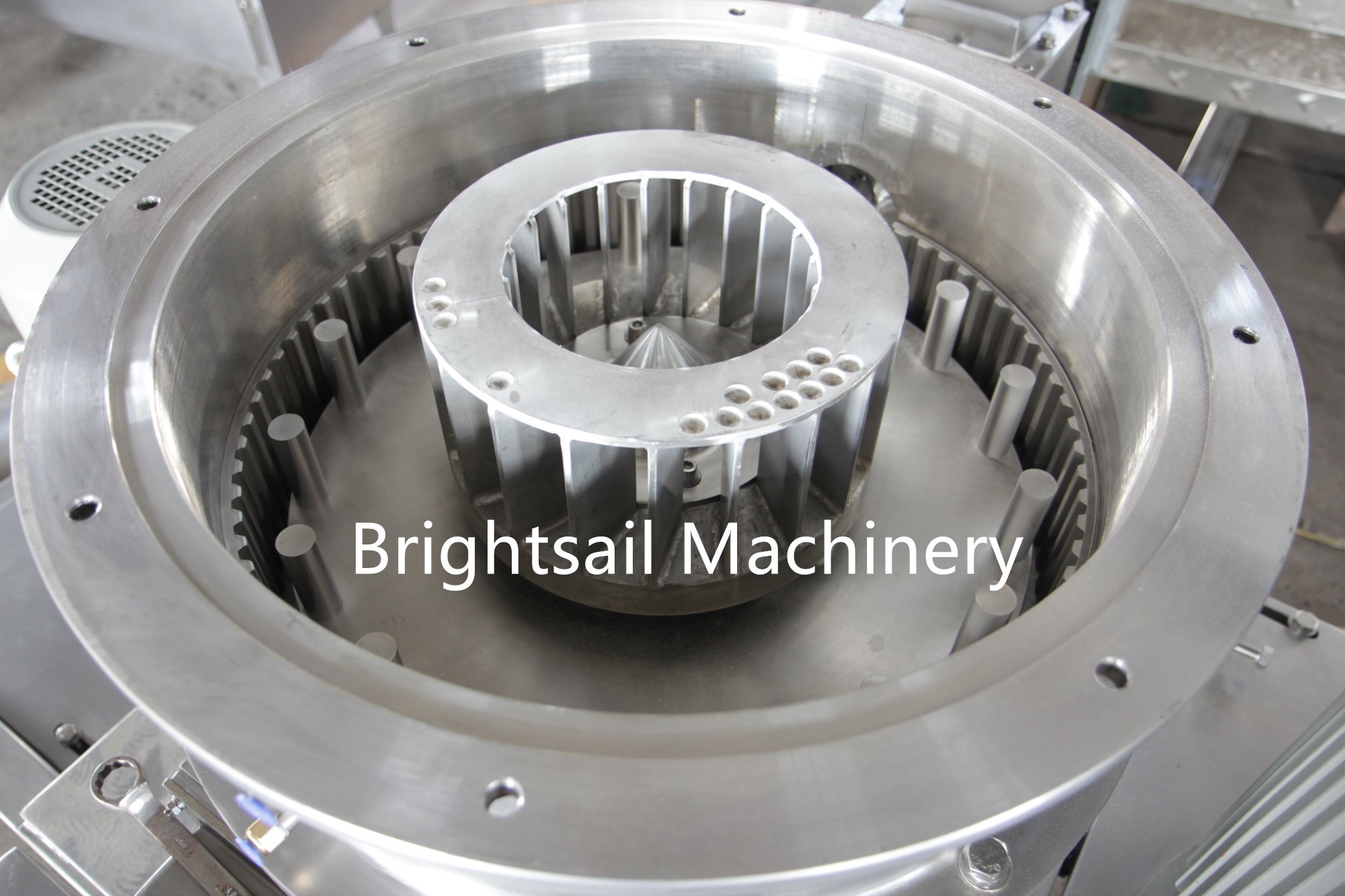

Detailed Images:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Why Choose Us:
Since the establishment of the company, we have been constantly
enhancing our service awareness and product specialization under
the encouragement of customers, and we have exported machine to
over 30 countries.For example, New Zealand, Germany, Poland,
Thailand, Pakistan, Qatar, Nigeria and many other countries.So
there is no need to worry about our expertise in this field.
