Multifunctional Herbs Grinding Machine Herbal Medicine Highly
Automated Machinery

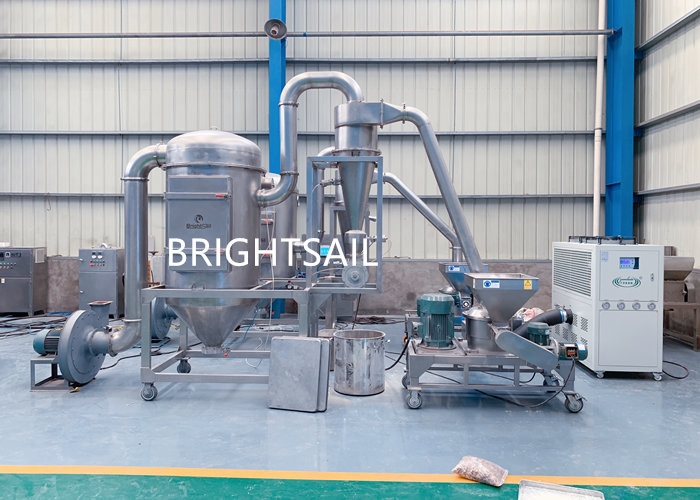

BSP grinders herb electric is composed of crusher, cyclone separator, dust collector, fan,
electrical control box, etc. It has the functions of dust
selection, no screen, no net, uniform particle size and continuous
processing. In line with the international advanced level, it is
suitable for grinding materials in pharmaceutical, chemical and
food industries.
Main Components:
(1) The left motor is pulverizing motor and the right motor is
grading motor. Small screw feeder is adopted to ensure the uniform
and controllable feeding speed.
(2) The material enters into the grinding chamber through a screw
conveyor, which is sheared and grinded by a fast rotating blade.
The powder enters the grading chamber through the guide ring.
(3) The rotary valve makes the powder discharge speed uniform. The
rotary valve is also made of stainless steel, which is easy to
clean and disassemble.
(4) Dust is collected in the dust collecting box.
Main Features:
(1) simple structure, easy to install and maintain.
(2) there is a water-cooled sleeve around the mill, and the
bearings cool the machine.
(3) motor, electric appliance, bearing and operation parts adopt
world advanced brand.
(4) there is no dust in the production process, and the dust can be
collected in the dust box.
(5) the granularity can be changed without changing the sieving
speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
How Can I Buy This Machine?
First, discuss the details and prices of all machines with our
sales staff. Secondly, confirm the price and payment terms, trade
guarantee / tt / custody / Western Union remittance, etc. Please
send us the order, confirm the proforma invoice and arrange the
deposit. We will arrange production as soon as we receive the
deposit. Please give us the final payment when the machine is
ready. We will arrange the reservation for you after receiving the
final payment.
