    15mm Tobacco Grinders Weed Ss316 Herbal Powder Machine

    Ask Lasest Price
    Brand Name : Brightsail
    Model Number : BSP
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    15mm Tobacco Grinders Weed Ss316 Herbal Powder Machine

    Good Quality Tobacco Grinders Weed Herb With Long Service Life

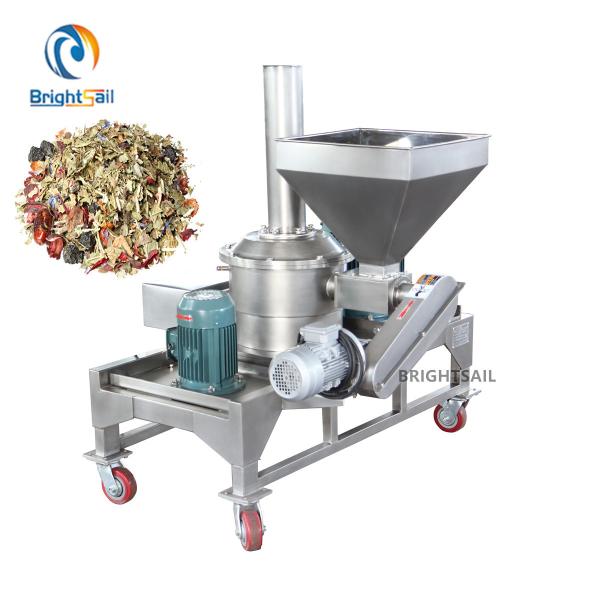

    BSP decorative herb grinders is composed of crusher, cyclone separator, dust collector, fan, electrical control box, etc. It has the functions of winnowing, no clean, uniform particle size and continuous processing. In line with the international advanced level, it is suitable for grinding materials in pharmaceutical, chemical and food industries.

    15mm Tobacco Grinders Weed Ss316 Herbal Powder Machine


    Working Method:

    The raw materials are transported to the crushing chamber through the hopper, the screw feeder to cut and reduce the high-speed cutting machine, and then the raw materials are sent to the cyclone separator and the bag filter to discharge the materials by the negative pressure suction method to meet the product demand. This is why the BSP grinder weed herb can make ultra-fine powder and be used as a fine powder grinder.


    Main Components:

    1. Pulse dust collector: the dust in the dust collector. A plurality of dust bags are arranged on the box body, and the dust bag bracket is also made of stainless steel, which is easy to disassemble. Pulse spray cleaning, dust removal is very convenient.

    2. Crusher part: the left motor is the crusher motor, and the right motor is the electromechanical equipment. Small screw feeder is adopted to ensure the uniform and controllable feeding speed.

    3. The material enters the grinding cavity through the screw conveyor, and is cut and grinded by the fast rotating blade in the grinding cavity. The powder enters the grading chamber through the guide ring.

    4. Cyclone separator: cyclone separator can separate dust and powder (particles). The rotary valve is made of stainless steel with uniform powder speed. Easy to clean and disassemble.



    Main Features:

    (1) simple structure, easy to install and maintain.

    (2) there is a water-cooled sleeve around the grinding room and the bearings are used to cool the machine. Motors, electrical appliances, bearings and operating parts are world-class brands.

    (3) there is no dust in the production process, the dust can be collected in the dust collecting box.

    (4) the grain size can be changed without changing the screen speed.


    Drawing:


    Technical Data:

    ModelBSP-350BSP-450BSP-500BSP-750
    Input size(mm)<15<15<15<15
    Fineness(mesh)60-250060-250060-250060-2500
    Capacity(kg/h)20-20040-50060-800120-1800
    Crush motor(kw)1118.53055
    Grade motot(kw)1.545.511
    Blower(kw)7.51118.537
    Feed motor(kw)0.550.550.751.5
    Discharge motor(kw)0.750.751.11.5
    Speed of principle axia(rpm)-6500-5350-4600-3100
    Grading impeller speed(rpm)4000400035003000
    Weight(kg)1600180023003100

    Our Company:

    15mm Tobacco Grinders Weed Ss316 Herbal Powder Machine

    Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.

    We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc.

    We have sent our products to more than 40 countries around the world for now.Brightsail is constantly committed to develop new advanced techniques and methods on the machines,since our goal is to be your trusted provider of creative and value added process solutions.
