Hot Selling Electric Herb Grinder Suitable For A Variety Of Uses
BSP metal herb grinderis composed of crusher, cyclone separator, dust collector, blower,
electric control box, etc. it has the functions of winnowing, no
screen, no net, uniform particle size and continuous processing. In
line with the international advanced level, it is suitable for
grinding materials in pharmaceutical, chemical and food industries.
Working method:
Raw material is delivered to the grinding chamber via hopper by
spiral feeder, and is cut and sheared by the high speed cutters,
then the material is moved into the whirlwind separator and the
sack dust catcher by the negative pressure sucking method, the
ejection material meets the product requirement. That's why BSP herb grinder machine can make super fine powder and can be used as a fine powder
grinder.
Main components:
1. Pulse dust collector: collect dust in the dust collector. There
are several dust bags in the box, and the dust bag holder is also
made of stainless steel, which is easy to remove. Pulse spray
cleaning is very convenient for dust collection.

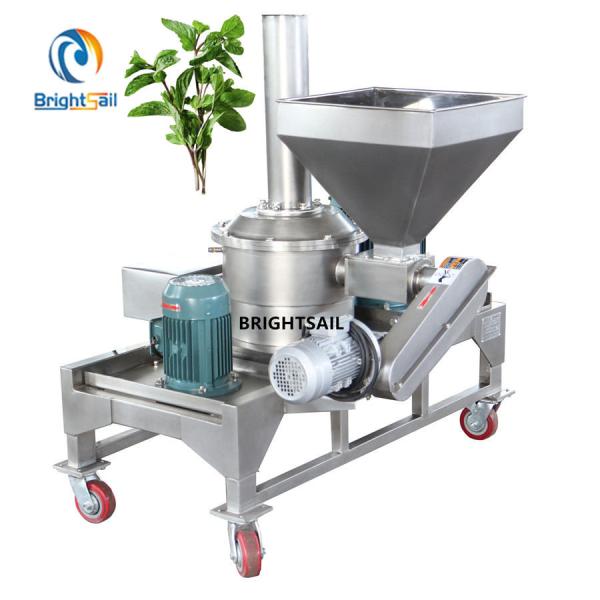

2. Crusher part: left motor is crushing motor, right motor is
classified electromechanical machine. A small screw feeder is used
to ensure a uniform and controlled feed rate.
3. Materials enter the grinding chamber through the screw conveyor
and are cut and ground in the grinding chamber by a rapidly
rotating blade. The powder enters the grading chamber through a
guide ring.
4. Cyclone Separator: Cyclone separator can separate dust and
powder (particles). The rotary valve is made of stainless steel
with uniform powder speed. Easy to clean and disassemble.
Main features:
1) The structure is simple and easy to install and maintain.
2) There are water cooling sleeves around the grinding chamber, and
the bearings can cool the machine.
3) Motors, electrical appliances, bearings and operating parts
adopt world advanced brands.
4) There is no dust in the production process, and the dust can be
collected in the dust removal box.
5) The particle size can be changed by changing the speed without
sieving.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
