60-2500 mesh Grinder Machine Herbs Pulverizer Mill For Food With
High Precision

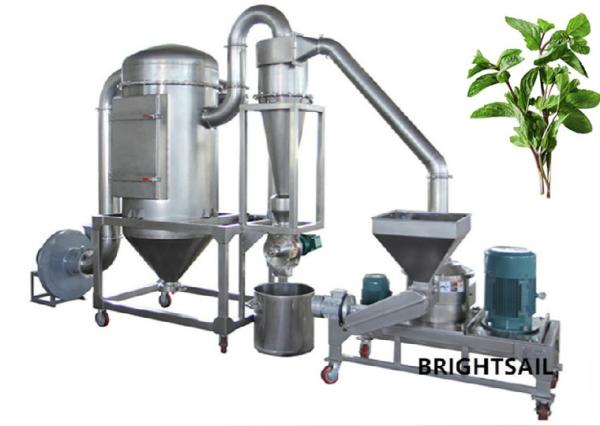

The BSP mill herb grinder is composed of a crusher, cyclone separator, dust collector, blower, electric control box,
etc. It has the functions of dust selection, no screen, no net,
uniform particle size and continuous processing. In line with the
international advanced level, it is suitable for grinding materials
in pharmaceutical, chemical and food industries.
Working Method:
The raw materials are transported to the crushing chamber by the
screw feeder. The raw materials are sent to the cyclone separator
and bag filter through the hopper, high-speed cutting machine after
shearing and trimming, and the discharge meets the product
requirements. This is why BSP superfine powder crusher can produce
ultra-fine powder and can be used as fine powder pulverizer.
Main Components:
1. Pulse dust collector: the dust in the dust collector. There are
many dust bags in the box, and the dust bag frame is also made of
stainless steel, which is easy to disassemble. Pulse spray
cleaning, dust removal is very convenient.
2. Crusher part: the left motor is the crushing motor, the right
motor is Electromechanical. Small screw feeder is adopted to ensure
the uniform and controllable feeding speed.
3. The material enters into the grinding chamber through the screw
conveyor, and is cut and ground by the fast rotating blade in the
grinding chamber. The powder enters the grading chamber through the
guide ring.
4. Cyclone separator: cyclone separator can separate dust and
powder (particles). The rotary valve is made of stainless steel
with uniform powder speed. Easy to clean and disassemble.
Main Features:
1) The structure is simple and easy to install and maintain.
2) There are water cooling sleeves around the grinding chamber, and
the bearings can cool the machine.
3) Motors, electrical appliances, bearings, operating parts are all
of the world's advanced brands.
4) There is no dust in the production process, and the dust can be
collected in the dust removal box.
5) The particle size can be changed without changing the screening
speed.
Drawing:
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
How Can I Buy This Machine?
First, discuss the details and prices of all machines with our
sales staff.
Secondly, confirm the price and payment terms, trade guarantee / tt
/ custody / Western Union remittance, etc.
Please send us the order, confirm the proforma invoice and arrange
the deposit. Once we receive the deposit, we will arrange the
production.
Finally, after the machine is ready, please arrange the balance
payment to us, and we will arrange the shipping space booking to
you after receiving the balance payment.
Our Services:
1. Pre-sale service:
24-hour consultation and consulting support;
Machine sample testing service;
Factory tour
2. After-sales service:
Guide the installation and use of the machine;
One year warranty;
Video support;
Engineers can go to the user's factory to assist in installation
and training.
Please connact us if you have any interests in our products.
our email: info@brightsail-asia.com website:www.brsmill.com
Whatsapp: +8615961653782
