Maximum Yield Of 1750kg Fruit Bubble Washer Frequency Control
Prodyct Description:
BSQP bubble washer is mainly used for the cleaning of Chinese toon, vegetables,
fruits, fungi, all kinds of packaging, high degree of cleaning, can
maintain the original color and lustre.
| Technical Data: |
| Models | BSQP-3500 | BSQP-4000 | BSQP-5000 |
| Size(mm) | 3500*1400*1350 | 4000*1600*1350 | 5000*1600*1350 |
| Power(kw) | 4.07 | 4.87 | 5.25 |
| Mesh Belt's Width(mm) | 600 | 800 | 800 |
| Weight(kg) | 360 | 500 | 700 |
| Capacity(kg/h) | 750 | 1250 | 1750 |
| Speed | Frequency Control |
Working Principle:
The principle of air bubble cleaning machine is mainly used in the
case before the equipment enclosure note right amount water,
high-pressure air bubbles in housing opportunities to produce a
large number of dense bubbles, make the product with roll as it
passed the box body scrub, a combination of items in a bubble
machine and water under the action of tumbling state, and with the
net belt to constantly move forward, when out of the water,
high-end with the spray head, high pressure washing. Then enter the
second half to distinguish the water area, the packaging for
secondary cleaning cooling, with the net belt forward to advance in
the surface, the high-end with a spray head for high pressure
rinse.
Product Description:
1.This type washing machine is made of foof grade 304 stainless
steel.
2.It is multifunctional washing and cleaning, non-damaging
materials.
3.It has air bubble generator to assure the best washing effect.
4.Ozone (Select function) and air bubble generator installed in
this machine make water full of bubble and ozone to get deep
cleaning effect during washing process.
5.It is with automatic purification function, so the water can be
purified and then reused.
6.Conveying speed is adjustable depedning on washing material and
your require.
7.Washing capacity can custom made from 100kg to 5000kg per hour.
Features Of BSQP Apple Bubble Washer:

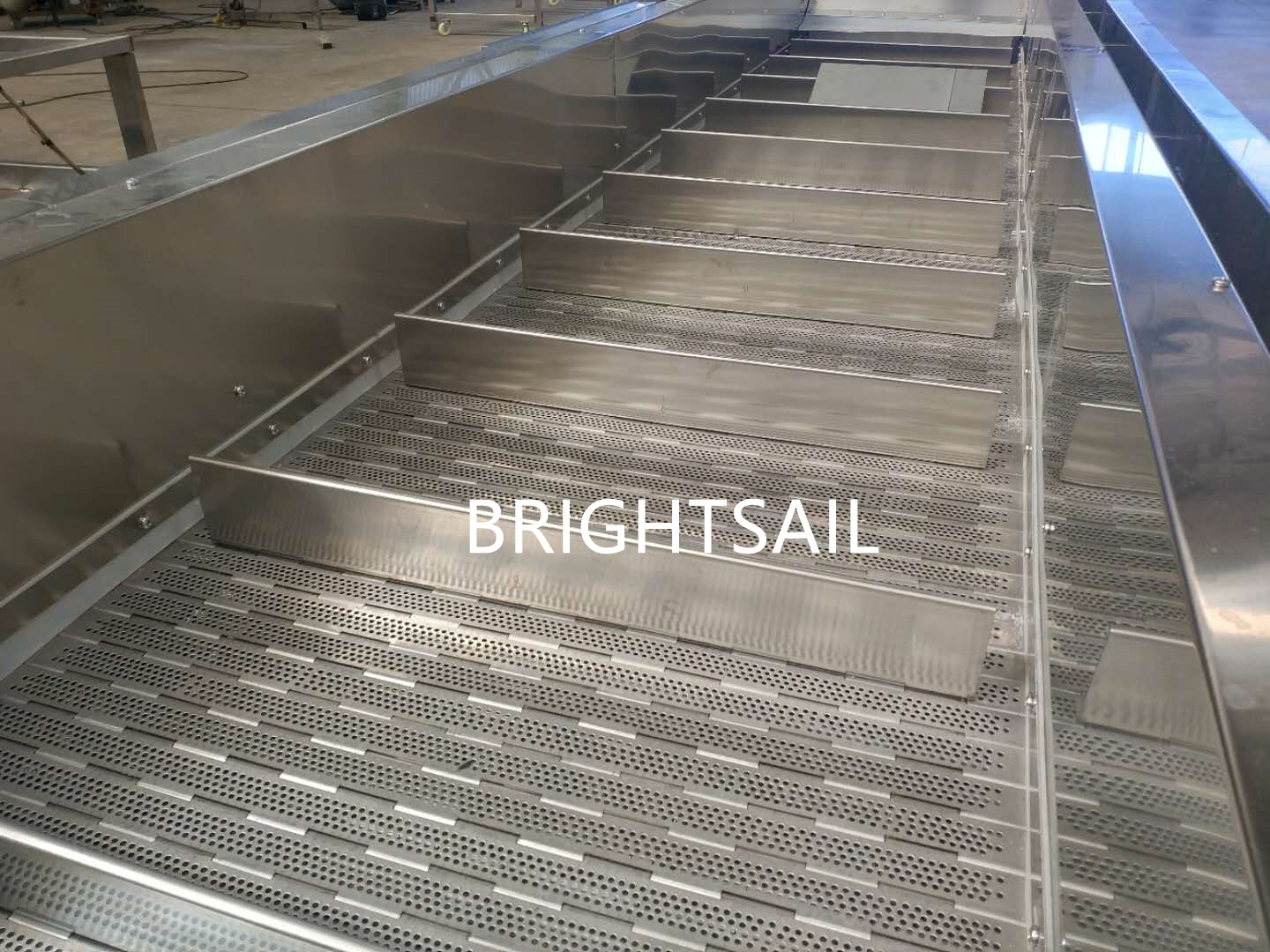

This machine adopts SUS304 stainless steel chain plate mesh belt
transmission, mesh belt high strength, small retractability, not
easy to deformation, easy to maintain and other characteristics,
the whole machine running balance, low noise, greatly improve the
work efficiency. When discharging, the material is transported out
of the equipment directly with the lifting of the net belt. The
conveying reducer is controlled by frequency conversion. The speed
of the net belt can be freely adjusted and the operation is stable.
