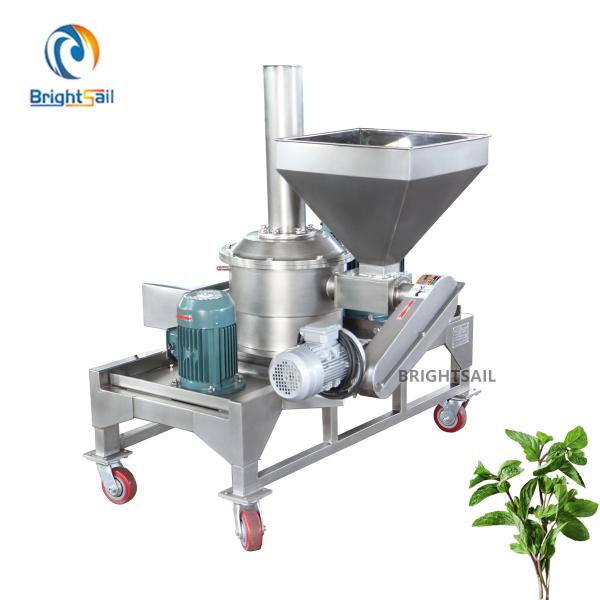

60-2500 Mesh Herb Cutting Machine For Industry
BSP commercial herb grinder consists of crusher, cyclone separator, dust collector, fan,
electrical control box, etc. It has the ability of selection, no
screening, uniform particle size, and continuous processing. In
line with the international advanced level, it is suitable for the
pharmaceutical and chemical, industrial material crushing, food and
other industries.
Working Method:
The raw materials are conveyed to the grinding chamber through the
screw feeder through the hopper, and after being cut by the
high-speed cutting machine, they are sucked into the cyclone
separator and the bag filter through the negative pressure.
Therefore, the BSP automatic herb grinder can produce ultra-fine powder and can be used as a fine powder
grinder.
Main Components:
1. Pulse dust box: Collect dust in the dust box. There are multiple
dust bags in the box, and the bag holder is also made of stainless
steel for easy disassembly. Using pulse jet cleaning, dust removal
is very convenient.
2. Crusher part: The left motor is a crushing motor, and the right
motor is a grading motor. Small screw feeder is used to ensure
uniform and
3. Cyclone part: The cyclone separator can separate dust and powder
(particles). The rotary valve makes the powder output speed even,
and is made of stainless steel. Easy to clean and disassemble.
Main Features:
(1) simple structure, easy installation and maintenance.
(2) there is a water cooled sleeve around the grinding chamber,
where the bearings cool the machine.
(3) motors, electrical appliances, bearings and operating
components adopt world-class brands.
(4) there is no dust in the production process, dust can be
collected in the dust removal box.
(5) without Sieving, the particle size can be changed by changing
the speed, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
