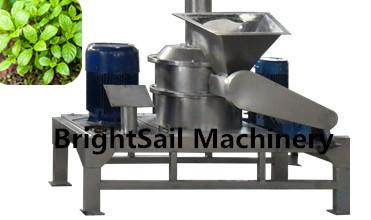

Good Selling Herb Grinders Herbal Tobacco Weed Grinder 60-2500 Mesh
BSP herb weed grinders is composed of crusher, cyclone separator, dust collector, fan,
electric control box and other components. It has the ability of
selection and screening, uniform particle size and continuous
processing. It is suitable for pharmaceutical, chemical, industrial
raw material crushing, food and other industries.
Working Method:
Raw materials are transported to the mill room by screw feeder and
hopper, then cut by high-speed cutting machine, and then inhaled by
negative pressure suction cyclone separator and bag filter.
Therefore, BSP bamboo herb grinder can produce ultra-fine powder, which can be used as grinding
machine.
Main components:
1. Pulse ash box: collect the dust in the ash box. There are
several dust bags in the packing box. The bag rack is made of
stainless steel, easy to disassemble. It is very convenient to use
pulse jet cleaning.
2. Crusher part: the left motor is the crushing motor, and the
right motor is the grading motor. Small screw feeder is adopted to
ensure the uniform and controllable feeding speed.
3. The material enters the grinding chamber through a screw
conveyor, where it is cut and ground by a rapidly rotating blade.
The powder enters the grading chamber through the guide ring.
4.Cyclone separation part: cyclone separation can separate dust and
powder (particles). It is made of stainless steel powder with
uniform speed. Easy to clean and disassemble.
Main features:
(1) The structure is simple and easy to install and maintain.
(2) There are water cooling jacket and bearing cooling machine
around the rolling mill.
(3) There is no dust in the production process, and the dust can be
collected in the dust removal box.
(4) The particle size can be changed by changing the speed without
sieving, and the powder particles are uniform.
Drawing:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
