| Machine | BSDF advanced hammer mill | BSP Ultrafine grinding machine | BS small hammer mill |
| Appearance |  |  |  |
Simple introduction |
BSDF can make finer powder than traditional hammer mill because of
its totally different structure,it combines coarse crusher,middle
fine milling and fine milling together, which means material can be
milled three times in a very short time, almost at the same time.It is suitable for most spices,can be ground to 20-60 mesh
fineness. | BSP grinding machine is suitable for grinding spices with low oil content. Spices can be ground to 40-200 mesh fineness | BS hammer mill is suitable for small volum production.Knife of type can be selected according to
different material and size of granules. |
| Ingredient | mill part, cyclone, dust collecting box, blower and electrical
control box. | three parts:main machine,auxiliary machine and electric control
box. | three parts: frame, mill room and feeding part. |
| Working Method | From right to left,they are coarse crush area,middle fine mill area
and fine milling area and blast area.Material fed in will be milled
by the three areas to become fine powder directly.

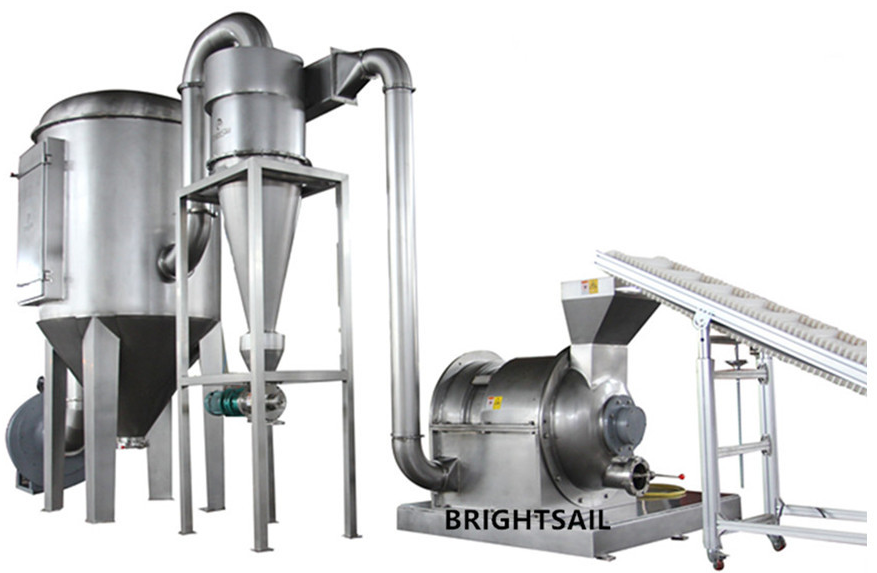

Change powder size by changing speed. | Raw material is delivered to the grinding chamber via hopper by
spiral feeder, and is cut and sheared by the high speed cutters,
then the material is moved into the whirlwind separator and the
sack dust catcher by the negative pressure sucking method, the
ejection material meets the product requirement. | When the spindle works at high speed, the movable tool head runs
together. The material is impacted, frictioned and cut by fixed
ring and movable hammer. Material also collides with each other. In
the combined effect, they are crushed into powder.
Type of knife can be selected according to different materials. |
| Features | 1. No need to change the particle size of the powder by changing
the speed of screen or screen. 2.Because there is no screen in the grinding chamber, there is no heat rise in the grinding chamber when grinding. 3.The mill part is composed of coarse grinder, medium fine grinder
and fine grinder, which can directly extract fine powder from large
raw materials. 4.You can save more power. | 1.Simple structure, easy installation and maintenance.
2.No dust in the production process, dust can be collected in the
dust collection box.
3.Do not need screen, can change the particle size by changing
speed; Particle sizes range from 80 to 500 mesh.
4.There are water-cooled jackets around the grinding chamber and bearings to cool the machine. | 1) Simple structure, stable operation, easy installation and
maintenance. 2) Pneumatic components, electrical components, operating
components are all adopted world famous brands. 3. The contact part of the grinding machine is made of stainless
steel, which has good corrosion resistance.
4. The inner wall of the machine is smooth, no powder and no dead
corner.Convenient cleaning |
Summarize: If your spice crush yield requirements are small,you can choose BS small hammer mill. If your spice crush yield requirements are large,and a fineness
about 20-60 mesh,you can choose BSDF advanced hammer mill. If the oil content of the material is not high, and you have high
requirements for the fineness of the finished powder,youcan choose BSP ultrafine grinding machine. |
