Work volume about 12 to 400L Wet Type Granulator
Description:Medical Wet Mixing GranulatorMedical Wet Mixing GranulatorMedical
Wet Mixing Granulator
1. This machine adopts the bedroom cylinder structure and has a
reasonable structure.
2. Inflate the drive shaft and switch to water when cleaning.
3. Fluidized granulation, granulating is approximately spherical,
and fluidity is good.
4. Reduces 252% binder compared to conventional processes and
reduces drying time.
5. Each batch is mixed for 2 minutes, granulated for 1-4 minutes,
and the efficiency is 4-5 times higher than the traditional
process.
6. Completed in the same closed container, dry mixing - wet mixing
- granulation, process reduction, in line with GMP regulations.
7. The entire operation has strict safety protection measures.
8. Frequency mixing is adopted for mixing and cutting to make
granulation more uniform.
Principle:
The powder material and the binder are thoroughly mixed into a wet
soft material by a bottom mixing paddle in a cylindrical container,
and then cut into uniform wet particles by a side-mounted
high-speed pulverizing paddle.
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 |
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the
mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p:
powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.

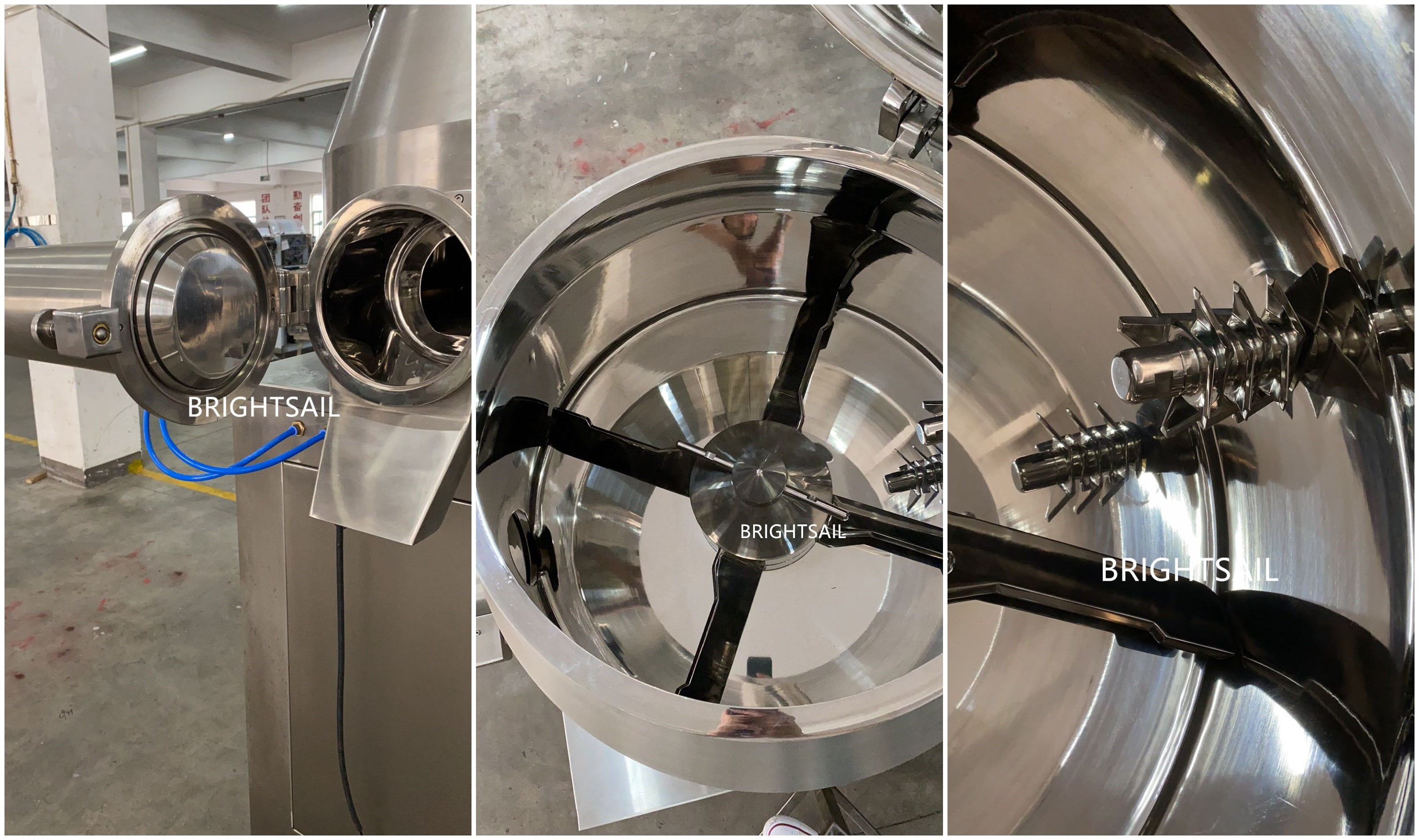

Detailed Images :
Features :
1. With consistent programmed technology (man-machine interface if
option selected), the machine can get assured of stability in
quality, as well as easy manual operation for convenience of
technological parameter and flow progress.
2.Adopted frequency speed adjustment to control the stirring blade
and cutter, easy to control the size of particle.
3. With the rotating shaft hermetically filled with air, it can
prevent all dusts from compact.
4. With a structure of conical hopper tank, all material can be in
uniform rotation.
