Work volume about 12 to 400L High Speed Mixing Granulator
Description:Grinding And Mixing GranulatorGrinding And Mixing
GranulatorGrinding And Mixing Granulator

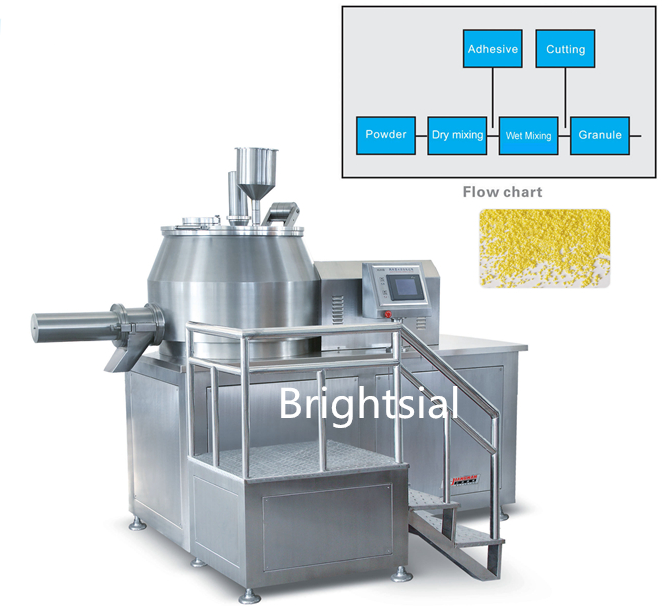

This Grinding And Mixing Granulator machine is composed of machine
body, layered pot, pot lid, stirring paddle, cutting knife,
discharge port, feeding device, flying knife drive, stirring drive,
cooling system, automatic control system and so on.
Principle:
1. The whole process consists of two programs including mixing and
granulating.
2. Powder metrical can be charged into the material pan from the
conical hopper and continue to rotate in the container under the
action of mixing blade once the hoper is closed. In tahe meanwhile,
all materials grow up the shapea of liquid bridge under continuous
effects of conical wall. Under the action of extrusion, friction as
well as crumb by blade and conical tank wall, all material is
gradually turn for loosen. At last,while opening the hoper outlet,
waterish particles are pushed off under the centrifugal effects of
blade.
3. These soft particles are formed not dependent on forced extrusion
effects, more exactly; these small and uniform particles are mainly
formed after continuous cutting under the similar-liquid state. In
all, this machine can realize the mutual transformation between
different materials.
high speed mixing granulatorhigh speed mixing granulatorhigh speed
mixing granulatorhigh speed mixing granulator
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 |
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the
mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p:
powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.
high speed mixing granulatorhigh speed mixing granulatorhigh speed
mixing granulatorhigh speed mixing granulator
Detailed Images :
high speed mixing granulatorhigh speed mixing granulatorhigh speed
mixing granulatorhigh speed mixing granulator
Features :Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing
GranulatorRapid Mixing Granulator
1)It is the structure of horizontal cylinder (cone).
2) Full sealed driving shaft, to use water when cleaning.
3)Fluidization granulation, the finished granules are similar to
roundness with good liquidity.
4)Compared with traditional process, it can reduce 25% binder and
the dry time can be shortened.
5)Each batch of materials will be dry-mixed for 2 minutes and be
granulated for 1-4 minutes. Compared with traditional process, it
has improved by 4-5 times.
6)All the processes of dry-mixing & wet-mixing & granulating are
finished in a closed vessel. So that it has reduced the process and
also compiles with GMP standard.
7)Whole operation has the strict safety precautions.high speed mixing granulatorhigh speed mixing granulatorhigh speed
mixing granulatorhigh speed mixing granulator
